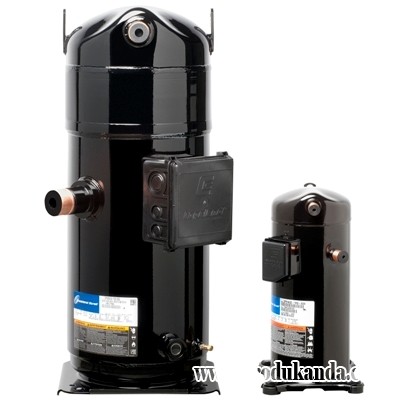

JUAL/ SELL COPELAND COMPRESSOR SCROLL

Model: ZR190KCE-TFD
Technical data
Displacement [ m³ / h] : 43, 3
Sound power [ dBA] : 82
Sound pressure level [ dB] : 71
Net Weight [ kg] : 66
Oil charge [ dm³ ] : 3, 3
Maximum high pressure [ bar] : 32
Maximum standstill pressure [ bar] : 20
Minimal lowside temperature [ ° C] : -35
Maximum lowside temperature [ ° C] : 52
PED category: 2
Electrical data
Power supply [ V/ ~ / Hz] : 380-420/ 3/ 50Hz
Locked rotor current [ A] : 174
Max. operating current [ A] : 34, 0
Winding resistance [ © ] : 0, 8
Connections
inches
Suction connection with supplied sleeve: 1 3/ 8 "
Discharge connection with supplied sleeve: 7/ 8 "
